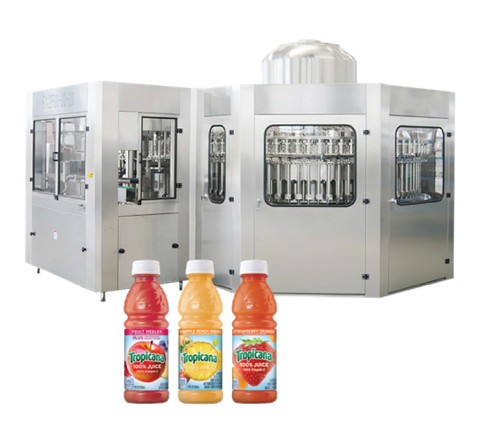

Juice Tea Energy Drink Hot Filling Machine

The RCGF series three-in-one machine set is primarily utilized in the beverage filling process. This machine integrates washing, filling, and capping with full automation, making it appropriate for filling juice and tea beverages. Additionally, with a temperature controller, it is capable of performing thermal filling.

Category:

Description

Product Application :

The RCGF series 3-in-1 machine is mainly used in the beverage filling process. It integrates rinsing, filling, and capping with full automation, making it ideal for filling juice, tea, and other beverages.
With its advanced temperature control, the machine also supports hot filling. The bottle neck-hanging technology allows easy adjustment for different bottle sizes by simply modifying the conveyor chain height.
The filling process uses hot filling technology combined with a constant pressure water supply system, ensuring faster and more stable operation. Compared with similar equipment, this machine offers higher quality, reliability, and excellent cost-performance ratio. The hot filling system works with a balanced tank and vacuum system for consistent results.

Technical Parameter Table:

Model RCGF14-12-5 RCGF16-16-5 RCGF24-24-8 RCGF32-32-8 RCGF40-40-12 RGF60-60-15
Capacity (for 500ml) 2000 4000 8000–10000 12000–15000 16000–18000 24000
Suitable bottle shapes PET circular or square
Bottle diameter (mm) Dia 50 – Dia 115
Bottle height (mm) 160 – 320
Filling type Overflow / Hot filling
Function Rinsing, filling, capping
Rinsing pressure >0.06Mpa <0.2Mpa
Application Juice / Tea / Milk beverage
Total power (KW) 4.4kw 4.4kw 4.4kw 5.2kw 6.2kw 7.8kw
Overall dimensions (m) 2.3×1.9 2.5×1.9 2.8×2.15 3.1×2.5 3.8×2.8 4.5×3.3
Height (m) 2.3 2.5 2.5 2.5 2.5 2.6
Weight (kg) 3500 5200 7000 9500 10500 12000
