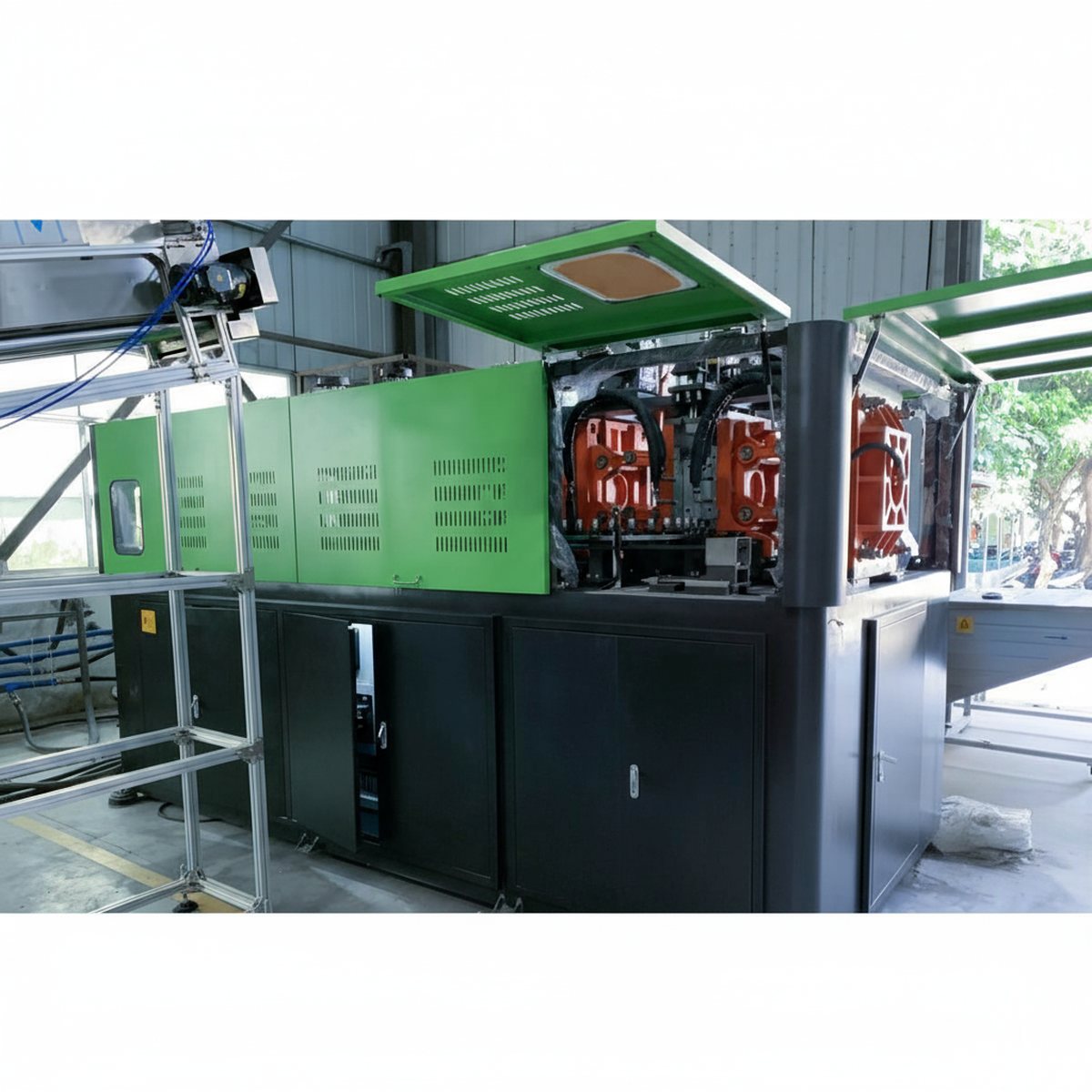

Automatic Linear Type PET Bottle Blowing Machine (FBM06)

The two-step Pet stretch blow moulding machine which are applicable in a wide range of PET packaging practice, such as for beverages, edible oil, food, pharmaceutical products and cosmetics,etc. With more than 10 years experience in developing and producing pet blow molding machine as well as the advanced technology absorbed domestic and abroad, we have developed with our constant innovation dozens of high speed and high precision equipments which have won the top reputation in the filed.

Capacity: 1ton ~10 ton / hour
Function: Reverse Osmosis
Application: Pure water / mineral water / drinking water

Category:

Description

Specification GLB04B GLB06B GLB08B
Name Automatic Bottle Blowing Machine Automatic Bottle Blowing Machine Automatic Bottle Blowing Machine
Model GLB04B GLB06B GLB08B
Cavities Quantity 6 Cavities 6 Cavities 8 Cavities
Max Volume 750 ml (A) / 2000 ml (B) 750 ml (A) / 2000 ml (B) 750 ml (A) / 2000 ml (B)
Output Capacity (500 ml) 4000 – 4500 BPH 6000 – 6500 BPH 8000 – 8500 BPH
Max. Container Diameter Φ50 mm – Φ70 mm Φ50 mm – Φ70 mm Φ50 mm – Φ70 mm
Neck Diameter Range Φ30 mm – Φ40 mm Φ30 mm – Φ40 mm Φ30 mm – Φ40 mm
Max. Preform Height < 140 mm < 140 mm < 140 mm
Application PET Stretch Blowing PET Stretch Blowing PET Stretch Blowing
Total Power 50 kW 75 kW 85 kW
Overall Dimensions (L × W) 4.2 × 3.2 m 5.6 × 3.5 m 6.5 × 3.6 m
Height 2.6 m 2.6 m 2.6 m
Weight 7000 kg 7500 kg 8500 kg

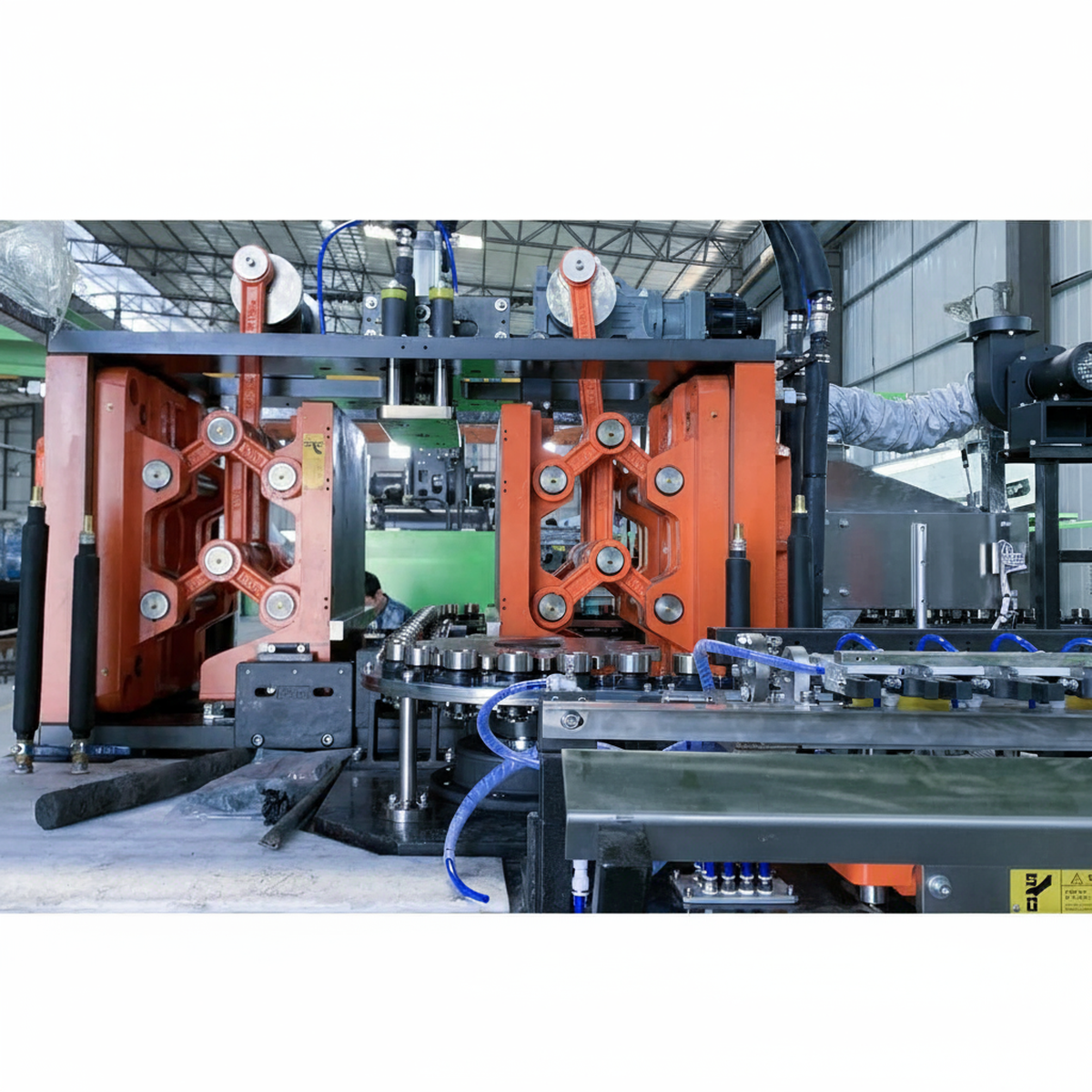

Mould Clamping System

Single cylinder clamps and locks the mould in a very short time, which avoids a very obvious parting line caused by mechanical clamping method.

Filling part

All the preform loading and bottle fetching and outputting movements are finished by mechanical transfer arms, which avoid contamination.

Preform Heating Part

Stale infrared ray heating system has 4 heating zone, each of them are controlled saperately
