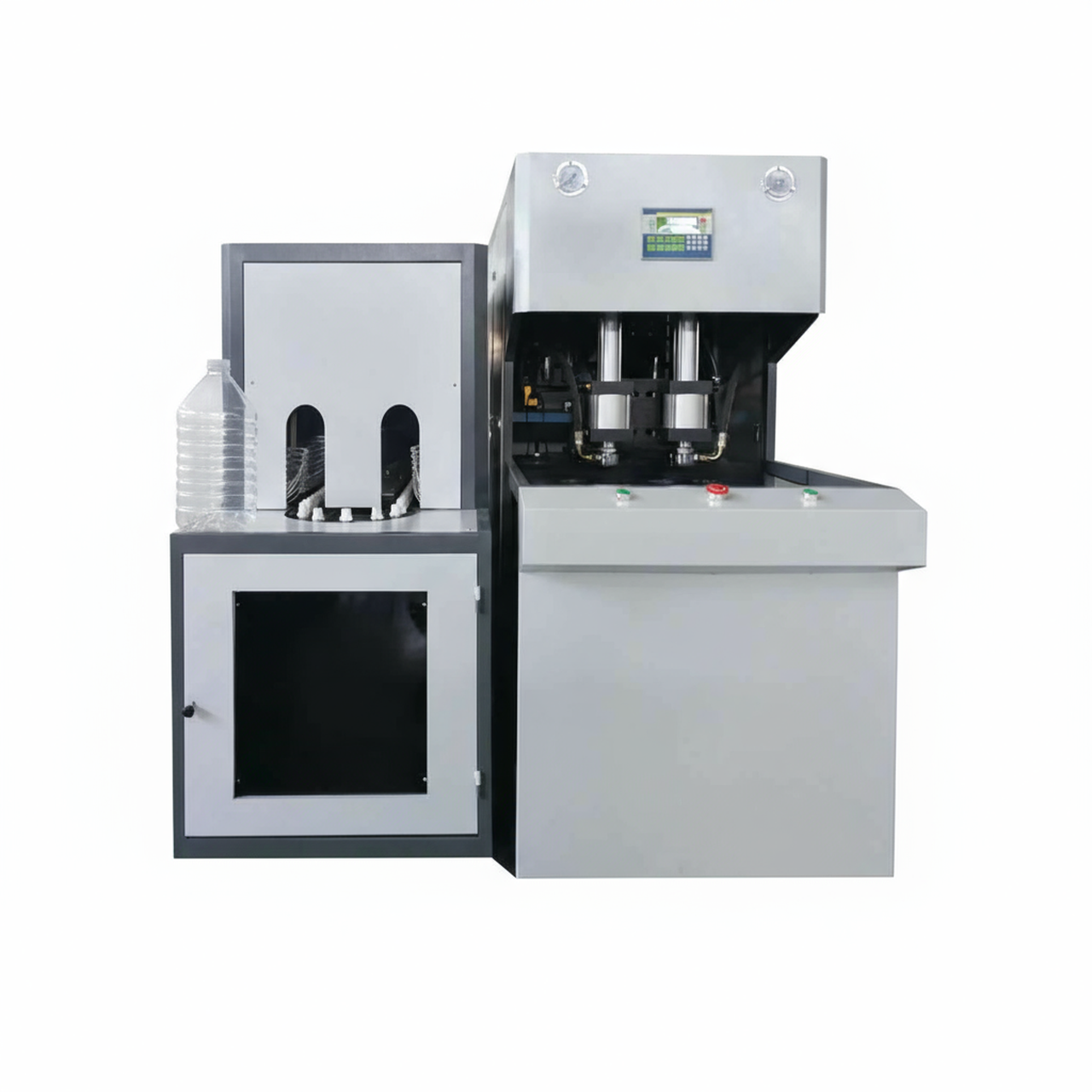

Semi Automatic 5L Bottle Blow Molding Machine (SBM-9B)
Semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 0.1L to 20L. It is widely used to produce the mineral water bottle,carbonated drink bottle,Juice bottle, pesticide bottle ,oil bottle,daily chemical bottle, cosmetics bottle,wide-mouth Jar ,PET can etc.
Capacity: 200-300BPH
Function: PET bottle blow molding
Application: PET bottle blow molding
Description
| Specification | SBM-9A | SBM-9B |
|---|---|---|
| Name | Bottle Blow Molding Machine | Bottle Blow Molding Machine |
| Model | SBM-9A | SBM-9B |
| Bottle Sizes | 2L – 5L | 5L – 10L |
| Remarks | One blower + one oven | Two blowers + one oven |
| Capacity (bottles/hour) | 300 BPH | 1500 BPH |
| Total Power | 18 KW | 22 KW |
| Max Bottle Height | < 350 mm | < 420 mm |
| Max Bottle Diameter | < 160 mm | < 180 mm |
| High Pressure Air Consumption | 1.2 m³/min (30 kg) | 1.6 m³/min (30 kg) |
| Weight | 500 kg | 800 kg |
