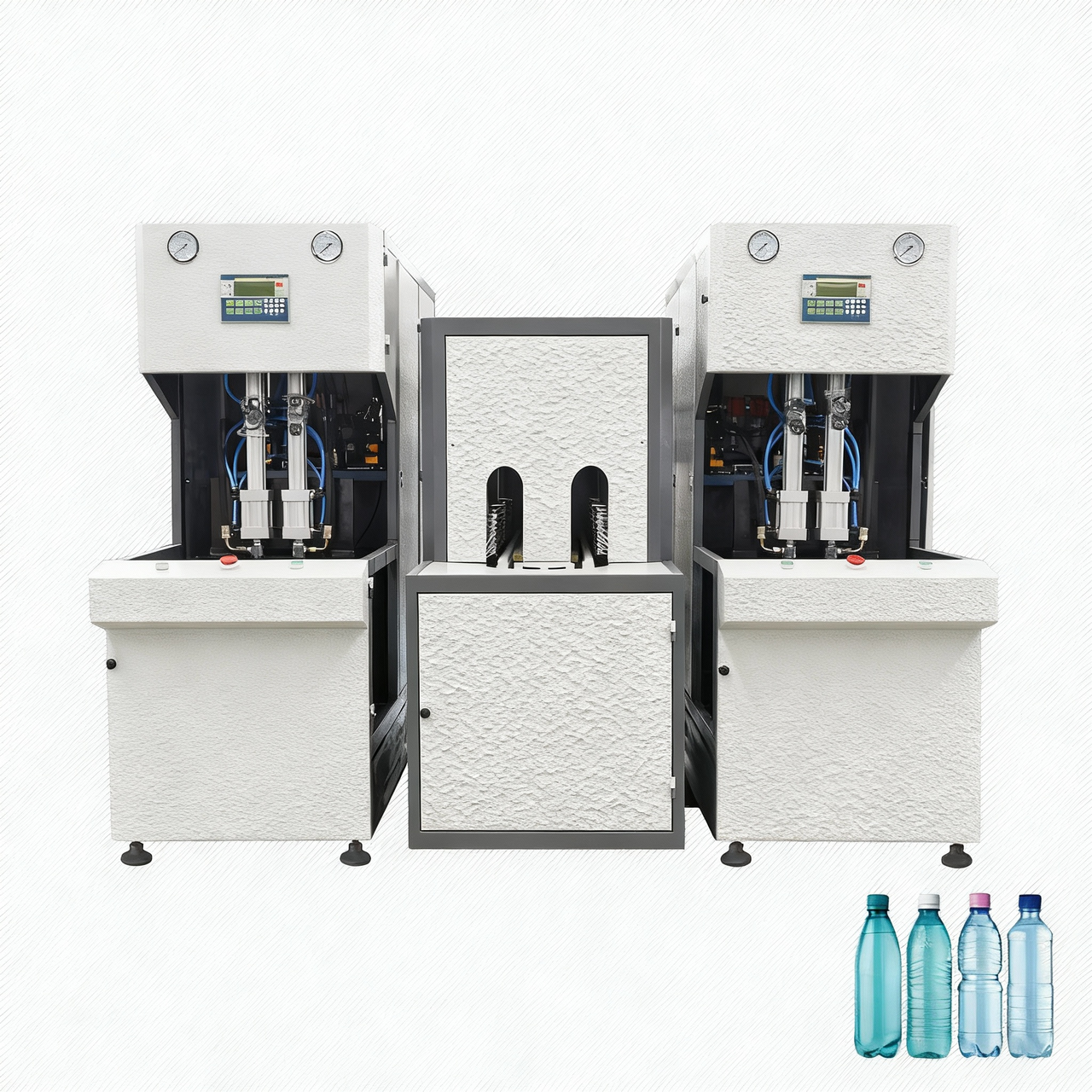

Semi Automatic Bottle Blow Molding Machine (SBM-8Y)
Semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 0.1L to 20L. It is widely used to produce the mineral water bottle,carbonated drink bottle,Juice bottle, pesticide bottle ,oil bottle,daily chemical bottle, cosmetics bottle,wide-mouth Jar ,PET can etc.
Capacity: 1200-1500 bottles per hour
Function: PET bottle blow molding
Application: PET bottles
Description
| Specification | SBM-8Y1 | SBM-8Y |
|---|---|---|
| Name | PET Bottle Blow Molding Machine | PET Bottle Blow Molding Machine |
| Model | SBM-8Y1 | SBM-8Y |
| Bottle Sizes | 0.1L – 2L | 0.1L – 2L |
| Remarks | One blower + one oven | Two blowers + one oven |
| Capacity (bottles/hour) | 800 BPH | 1500 BPH |
| Total Power | 15 KW | 25 KW |
| Max Bottle Height | < 350 mm | < 350 mm |
| Max Bottle Diameter | < 120 mm | < 120 mm |
| High Pressure Air Consumption | 1.0 m³/min (30 kg) | 1.2 m³/min (30 kg) |
| Weight | 500 kg | 800 kg |
